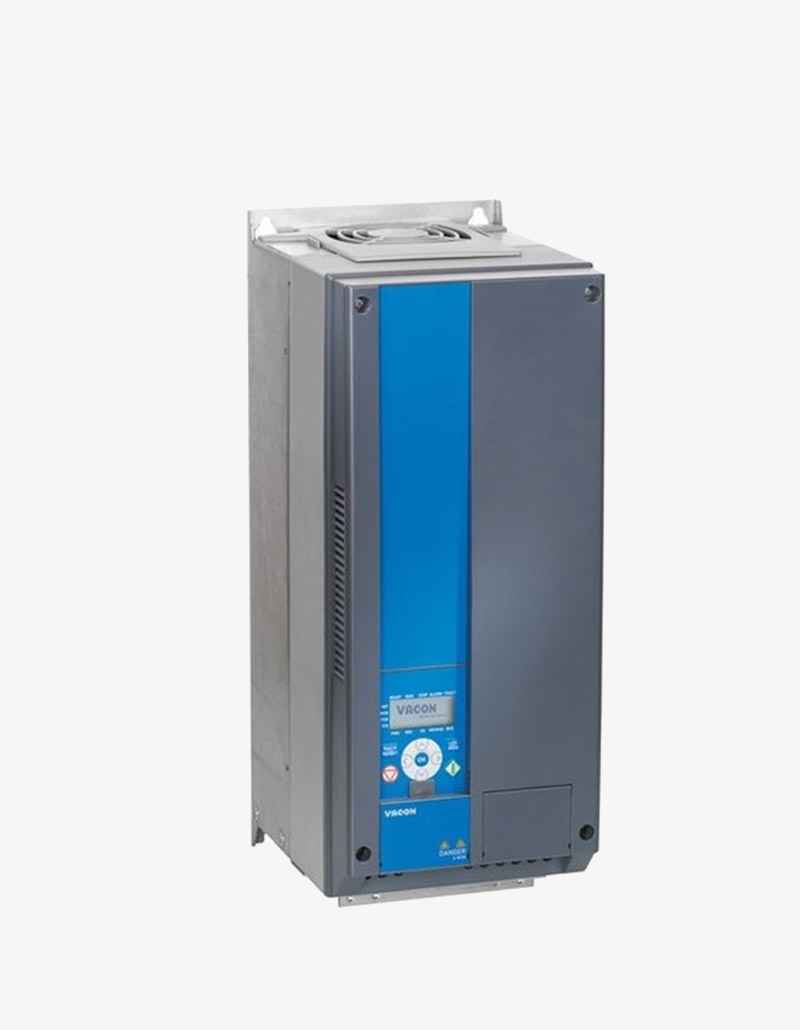

VACON® 100 – versatile
| Application: | designed for control of pumps, fans, compressors, conveyors, drilling, mills, drums.. |
| Control Perfomance: | Open loop vector control (5-150% of base speed) Ramp times (acceleration and deceleration): 0.1-3000 s |
| Frame: | MR4 ÷ MR12 |
| Overload: | 110% / 150% |
| Power: | 0.55 ÷ 800kW |
| Current: | 3.7 ÷ 820A |
| Voltage: | 208 ÷ 240VAC / 380 ÷ 500VAC / 525 ÷ 600VAC |
| Input: | 2 x AI 6 x DI 10V, ref. 24V in |
| Output: | 1 x AO 3 x RO 2 x RO + TI 2 x 24V out Built in modules: Modbus TCP/IP, BACnet IP, PROFINET, EtherNet/IP |
| Output Frequency: | 0 ÷ 320Hz |
| Ambient Temperature: | -10 ÷ 50°C |
| Braking Chopper: | integrated |
| DC Choke: | integrated |
| Emmisions: | EMC class 2 |
| Protection Class: | IP21 / IP54 |
| Dimensions (W X H X D): | see data sheet |
| Weight: | see data sheet |
| Approvals: | SIL3, DNV -GL, BV, LR, ABS and RINA |
