شركة المروة
من الشركات الرائدة في مجال الطاقة المتجددة
الموزع المعتمد داخل جمهورية مصرالعربية لخلايا شركة جينكو الأولى عالميا بين الشركات المصنعة لألواح الطاقة الشمسية ايضا مستورد لجميع اكسسوارات الطاقة الشمسية من ام سي فور للربط بين الكابلات
ايضا مستوردين للقواطع الكهربائية ماركة صن تري جميع القدرات ايضا تقوم شركة المروة باستيراد العديد من انواع الانفرتر مثل انفرتر
خدماتنا
-
خلابا جينكو
- انفرتر

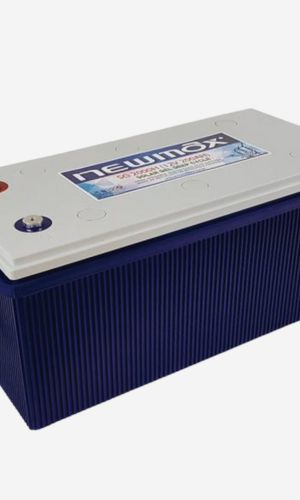

- بطاريات

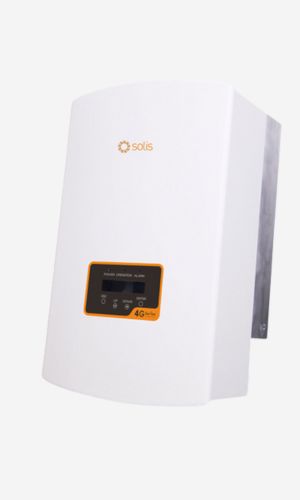

- انفرتر off grid
- انفرتر pump
- Protections
- مضخات
- DC Cables
جديد المنتجات
Jinko Tiger Pro 54HC 395-415 Watt
MONO-FACIAL MODULE Tiger Pro 54HC
:Key Features
Jinko Tiger Pro 54HC 395-415 Watt
Multi Busbar Technology
Better light trapping and current collection to improve
Module power output and reliability.
Reduced Hot Spot Loss
Optimized electrical design and lower operating current
for reduced hot spot loss and better temperature coefficient.
Excellent Anti-PID performance guarantee via
Optimized mass-production process and materials
Jinko Cheetah Perc+JKM410
Cheetah HC MBB 72H
400-420 Watt
KEY FEATURES
Higher module conversion efficiency (up to 20.87%) benefit from half-cell structure
(low resistance characteristic).
High Efficiency
Low-light Performance
Certified to withstand: wind load (2400 Pascal) and snow load (5400 Pascal)
Severe Weather Resilience
High salt mist and ammonia resistance certified by TUV NORD.
Durability against Extreme Environmental Conditions
Jinko Tiger 465-470 Watt
Tiger Mono-facial
455-475 Watt
KEY FEATURES
TR technology + Half Cell
TR technology with Half cell aims to eliminate the cell gap to
increase module efficiency (mono-facial up to 21.16%)
9BB instead of 5BB
9BB technology decreases the distance between bus bars and
Finger grid line which is benefit to power increase
Jinko Tiger Pro 72HC 530-550 Watt
MONO-FACIAL MODULE Tiger Pro 72HC
P-Type
530-550 Watt
MBB HC Technology Positive power tolerance of 0~+3% ISO9001:2015: Quality Management System ISO14001:2015: Environment Management System ISO45001:2018 Occupational health and safety management systems IEC61215(2016), IEC61730(2016)
انفرتر 600_Inverter Yaskawa-GA700-IP20-Size5B-01
Yaskawa GA700 Series AC Inverter for 110kW (150HP) 400V 3ph motor to 216A at high overload or 132kW (175HP) to 250A when Fan/Pump rated. Operates in VxF, Sensorless Vector or Full Closed-loop Vector control (with the optional encoder feedback card) and converts fixed frequency Three Phase 400V input to variable frequency Three Phase 400V to control a standard AC induction, permanent magnet or synchronous reluctance motor.
Size 7: 312mm Wide x 420mm Deep x 700mm High. IP20.
Weight: 71kg.
Overload: 150% x 60 seconds. High Overload. Overload: 110% x 60 seconds. Fan/Pump Rated. Speed Control Range: 0-590Hz. Braking: Built-in braking transistor for 100% Torque x 10 seconds every 100 seconds to 3.2 Ohm minimum external resistor (not supplied) - see the Resistor options linked below or use the 'Which Resistor' button on this page.
Includes removable Operator Keypad, 3 Analogue Inputs, 8 Digital Inputs, 1 Pulse Input, 2 Analogue Outputs, 1 Pulse Output, 4 Relay Outputs (1 x Fault Relay), terminals for MEMOBUS/Modbus RS485 Communications, terminals for dual channel SIL3 safe torque off (STO), 24V DC input to power the control unit when the main supply is disconnected. USB mini-B port for PC connection.
Input Current: 207A at High Overload, 248A when Fan/Pump rated. Input Voltage: 380-480V Three Phase -15% +10% at 50-60Hz ±5%. EMC Compliance: IEC EN 61800-3 Category C3 (Industrial). Disabled by default, can be enabled via screw. Cubicle mount. Rated 50°C ambient. Ventilation space in front: [not specified], above: 120mm, below: 120mm, at sides: 30mm. Heat Loss at max output: 2045W at High Overload, 2211W when Fan/Pump rated. Mounting via 4 x M10 bolts (not supplied) at rear on 218mm x 659mm centres.
انفرتر 600_Inverter Yaskawa-GA500-IP20-Size5B-01
600_Inverter Yaskawa-GA500-IP20-Size5B-01
Highlights
- No power programming
- Intuitive keypad
- Conformal coated (IEC 60721-3-3: 3C2, 3S2)
- Up to 30% smaller than the competition
- Current vector control, open loop
- Induction motor (IM), permanent magnet motor (PM), or synchronous reluctance motor operation
- SIL3 (IEC 62061), PLe (ISO 13849-1) safety ratings
- Embedded Modbus communication
- Wide variety of communication options
- Variety of mounting methods (standard, IP20/UL Type 1, side-by-side, external heatsink, DIN rail)
- Embedded 24 Vdc power supply
- Maintenance monitors
- Cooling fan replacement without tools
- Optional LCD or Bluetooth keypad
- Global certifications (CE, UL, cUL, TUV, RCM)
- MTBF: 28 years
- Short Circuit Current Rating (SCCR): 31 kA rms symmetrical
- Common programming with all other Yaskawa drives
- DriveWizard Industrial software for parameter management and start-up
- DriveWizard Mobile application for smartphones and tablets
- Function Block Diagram (FBD) programming via DriveWorksEZ™
انفرتر Inverter pump VACON_100_LR
VACON® 100 – versatile
| Application: | designed for control of pumps, fans, compressors, conveyors, drilling, mills, drums.. |
| Control Perfomance: | Open loop vector control (5-150% of base speed) Ramp times (acceleration and deceleration): 0.1-3000 s |
| Frame: | MR4 ÷ MR12 |
| Overload: | 110% / 150% |
| Power: | 0.55 ÷ 800kW |
| Current: | 3.7 ÷ 820A |
| Voltage: | 208 ÷ 240VAC / 380 ÷ 500VAC / 525 ÷ 600VAC |
| Input: | 2 x AI 6 x DI 10V, ref. 24V in |
| Output: | 1 x AO 3 x RO 2 x RO + TI 2 x 24V out Built in modules: Modbus TCP/IP, BACnet IP, PROFINET, EtherNet/IP |
| Output Frequency: | 0 ÷ 320Hz |
| Ambient Temperature: | -10 ÷ 50°C |
| Braking Chopper: | integrated |
| DC Choke: | integrated |
| Emmisions: | EMC class 2 |
| Protection Class: | IP21 / IP54 |
| Dimensions (W X H X D): | see data sheet |
| Weight: | see data sheet |
| Approvals: | SIL3, DNV -GL, BV, LR, ABS and RINA |

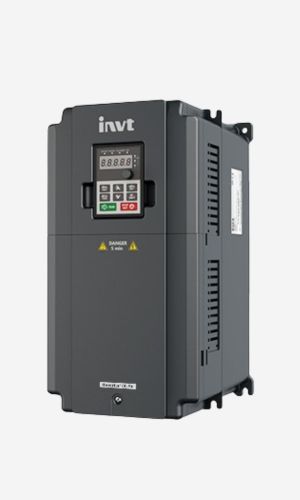

INVT Goodrive100-PV Solar Pumping Inverter
Broadest voltage and power range
Support for driving single-phase 220V and three-phase 220V/380V pumps,the power
From 0.4kW to 110kW.
Easy to use :
The inverters automatically start or sleep only after being connected to solar panel
without any parameter setting.
Multiple protective measures
Including PV over-voltage protection, PV polarity reverse warning, auto derating against
Over-temperature etc, which can extend product's life.
Advanced MPPT algorithms
Ensure the solar power tracking efficiency reaches 99%.
Work in low voltage
Models of 2.2kW or less can be configured with the boost module, which can make the
Pump work in low voltage and reduce the cost by decreasing the number of solar panel.
Auto switch between solar and grid input
Implement auto switch between solar input and grid input, achieved 24-hour unattended work.
Remote monitor:
Support the GPRS module, which can remote monitor the inverter by using the APP.
Product for high level protection
Support cabinet product for IP54 protection level.

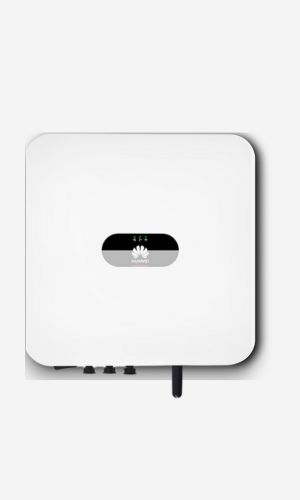

انفرتر هواوي Inverter ON-Grid Huawei 100KTL-M1
SUN2000-100KTL-M1 - Huawei Smart PV String Inverters
Brand Name: Huawei Model Number: Huawei sun2000-60ktl-M0
انفرتر هواوي Inverter ON-Grid Huawei 60KTL-M0
SUN2000-60KTL-M0 - Huawei Smart PV String Inverters
Brand Name: Huawei Model Number: Huawei sun2000-60ktl-M0 Output Type: TRIPLE Input Voltage: 1100V Output Voltage: 380V Type: DC/AC Inverters Output Frequency: 50Hz;60Hz Output Current: 91.2A@380V;86.7A@400V Size: 1075*555*300mm Weight: 74
انفرتر هواوي Inverter ON-Grid Huawei 50KTL-M0
SUN2000-50KTL-M0 - Huawei Smart PV String Inverters
Brand Name: Huawei Model Number: Huawei sun2000-50ktl-M0 Input Voltage: 1100V Output Frequency: 50Hz;60Hz Output Current: 83.6 A @380 V, 79.4 A @400 V Size: 1,075 x 555 x 300 mm (42.3 x 21.9 x 11.8 inch) Weight: 74 kg (163.1 lb.)
انفرتر هواوي Inverter ON-Grid Huawei 30/36/40KTL-M3 KTL
SUN2000-30/36/40KTL-M3 - Huawei Smart PV String Inverter
Brand Name: Huawei Model Number: SUN2000-30/36/40KTL-M3 Rated Input Voltage: 600V Rated Output Voltage: 230 Vac/ 360 Vac, 3W/N + PE Max. Input Voltage: 1100 V Rated AC Grid Frequency: 50 Hz / 60 Hz Size: 640 x 530 x 270 mm (25.2 x 20.9 x 10.6 inch) Weight: 43 kg (94.8 lb)شركائنا
